Welding automation
L1800
Flexible Automation for Mordern Manufacturing
Starting from $9,999
Built for Real Manufacturing
Start in 30 minutes with a visual interface and handheld teaching.
Quick to deploy, easy to use, and designed for fast ROI.
Flexible Welding Automation for Modern Manufacturing
L1800 is designed for high-speed, high-precision laser welding across a wide range of thin-sheet and fine-finish applications. It supports materials such as carbon steel, stainless steel, aluminum alloy, and cold-rolled steel, delivering clean seams, low deformation, and excellent weld appearance.
With an intuitive visual operating system and easy-to-use teaching process, WA-Laser enables operators to get started quickly while maintaining precise control over weld quality.
Combining speed, accuracy, and reduced post-processing, WA-Laser is an ideal solution for manufacturers looking to improve efficiency while achieving cleaner and more refined welding results.
Technical Specifications
General
| Number of Axis | 6 (J1–J6) |
| Working Range | 1880 mm |
| Rated Payload | 25 kg |
| Repeatability | ±0.03 mm |
| Mounting | Floor / Ceiling |
| Protection Rating | IP54 |
System & Environment
| Controller | RMC 201 / RMC 203 |
| Control System | Senou Lite |
| Weight | 210 kg |
| Temperature | 0–45°C |
| Humidity | 20–80% (No Condensation) |
| Noise Level | < 85 dB |
Axis Performance
| Axis | Working Range | Max Speed |
|---|---|---|
| J1 | -170° / +170° | 247°/s |
| J2 | -95° / +80° | 197°/s |
| J3 | -70° / +90° | 197°/s |
| J4 | -170° / +170° | 350°/s |
| J5 | -120° / +120° | 350°/s |
| J6 | -360° / +360° | 1280°/s |
System Components

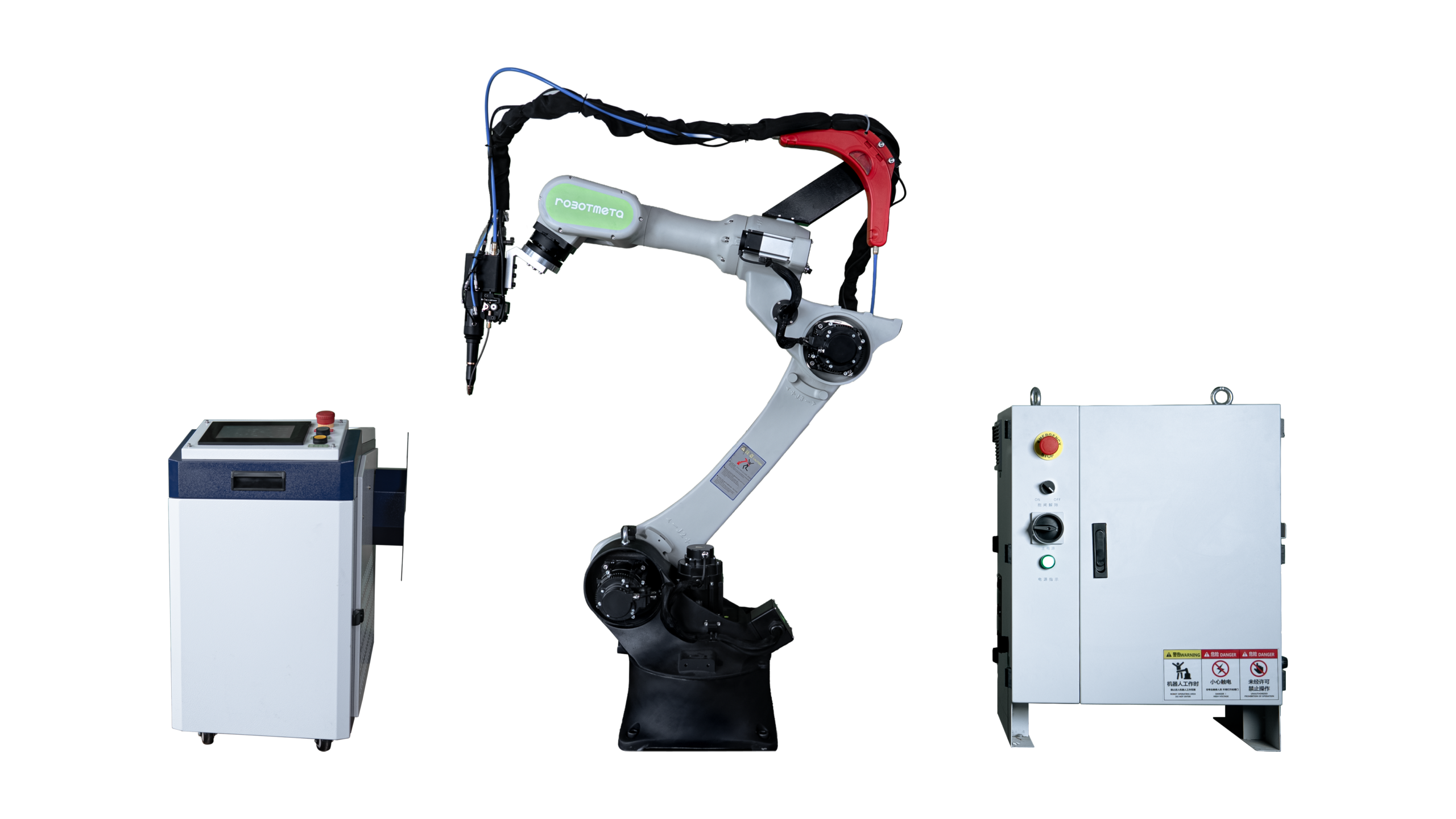

What’s Included
RobotMeta M2000 is delivered as a complete welding automation system, including all essential components required for fast installation and seamless integration into your production line.

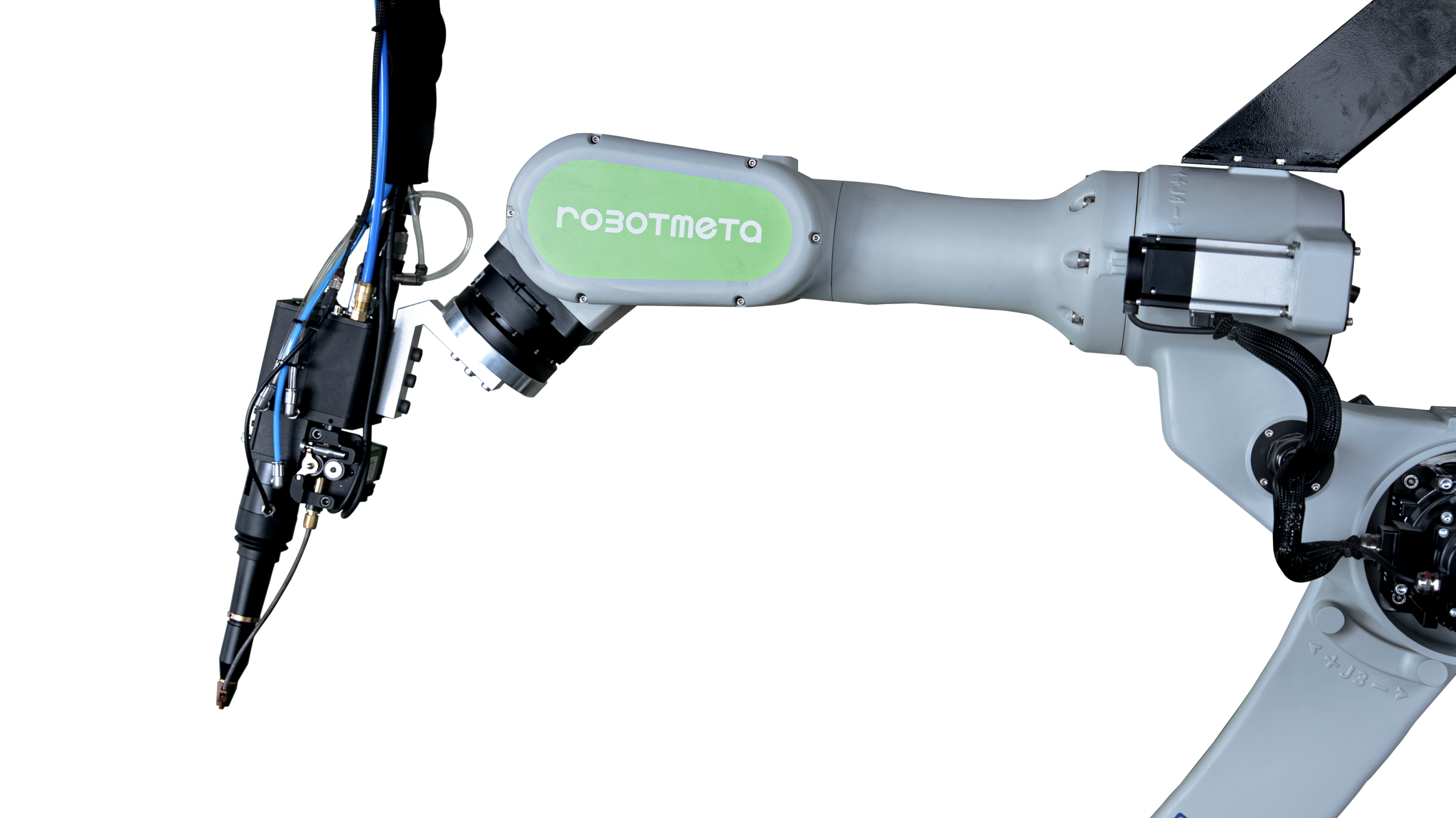

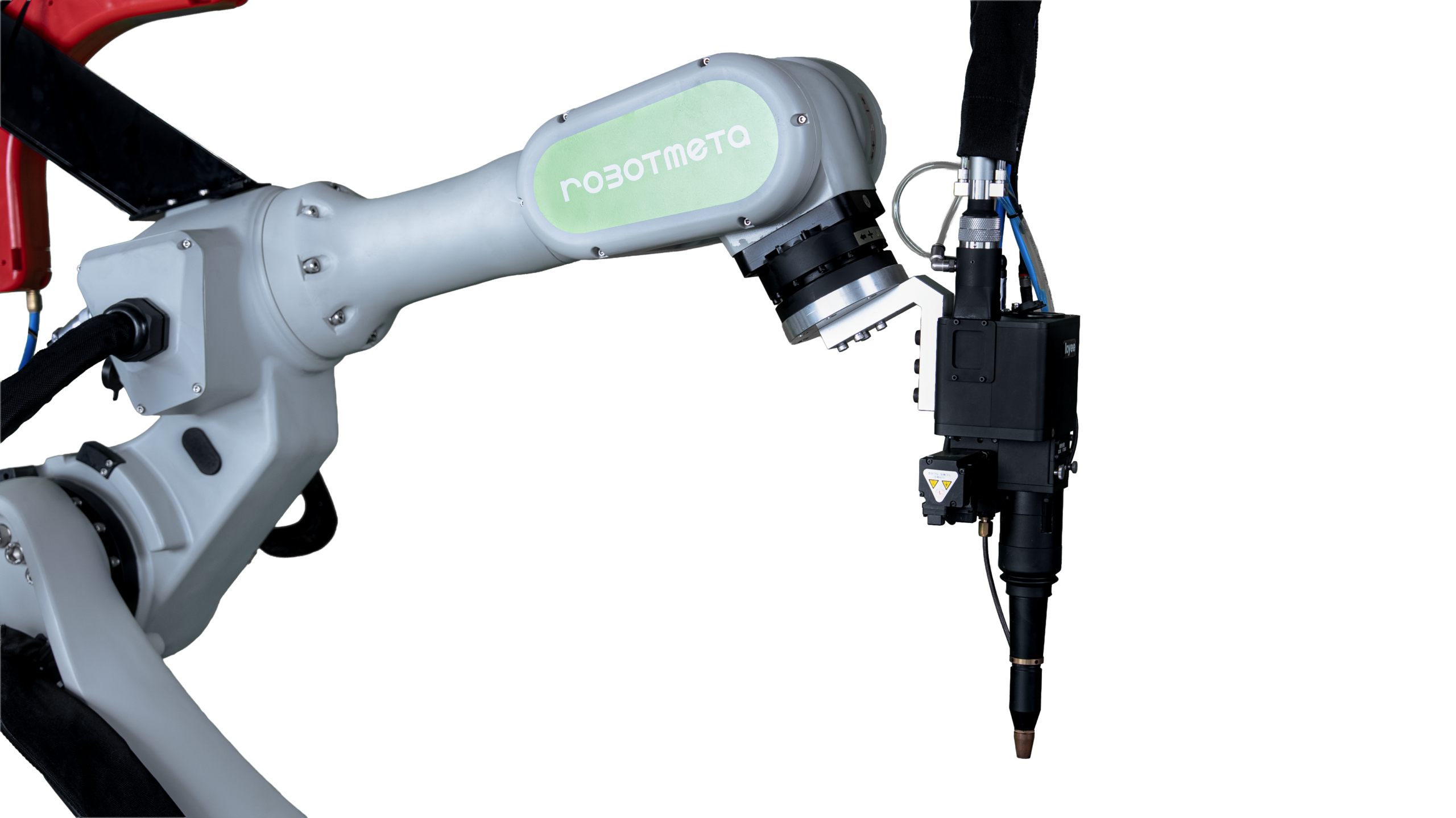

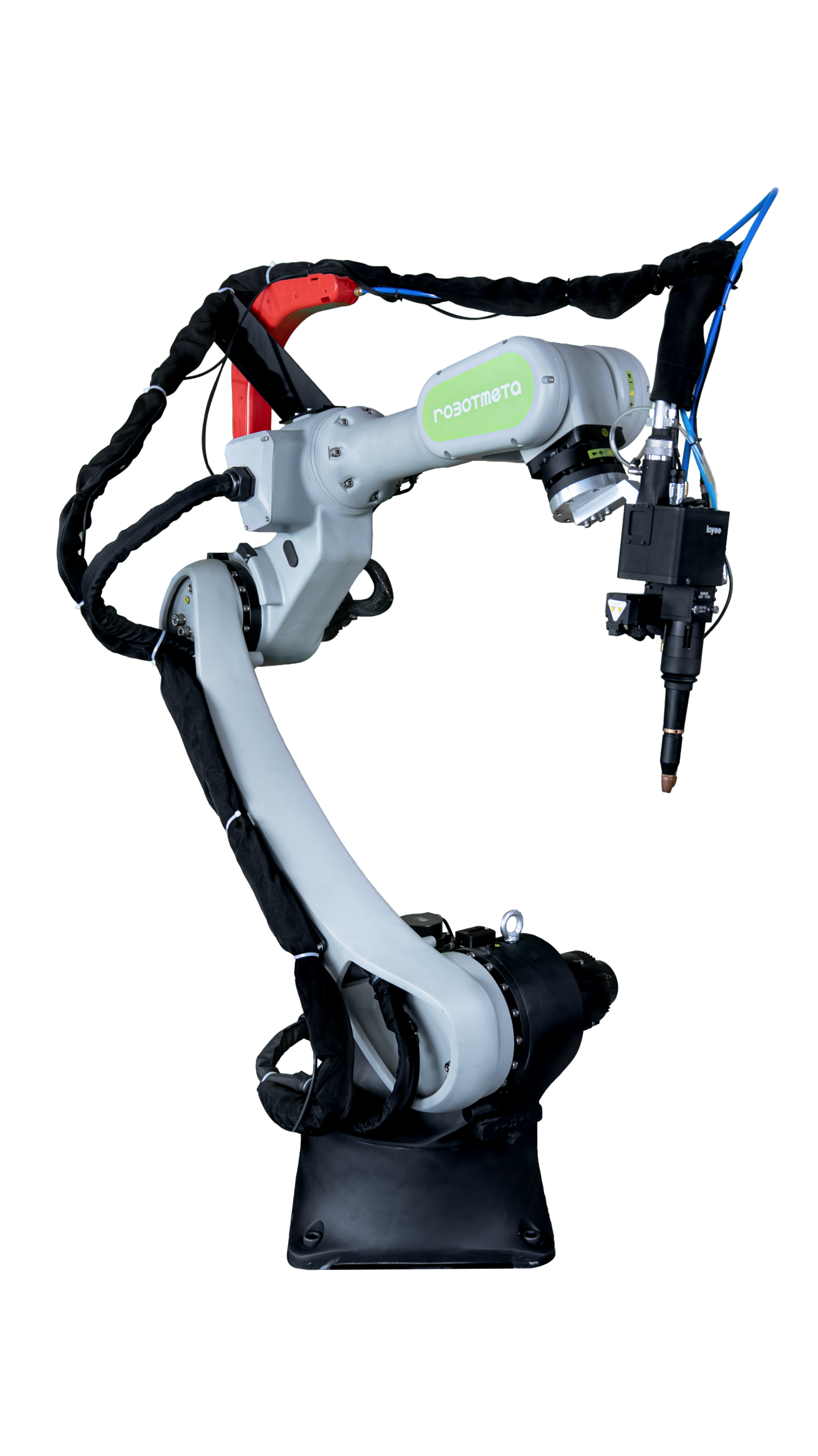

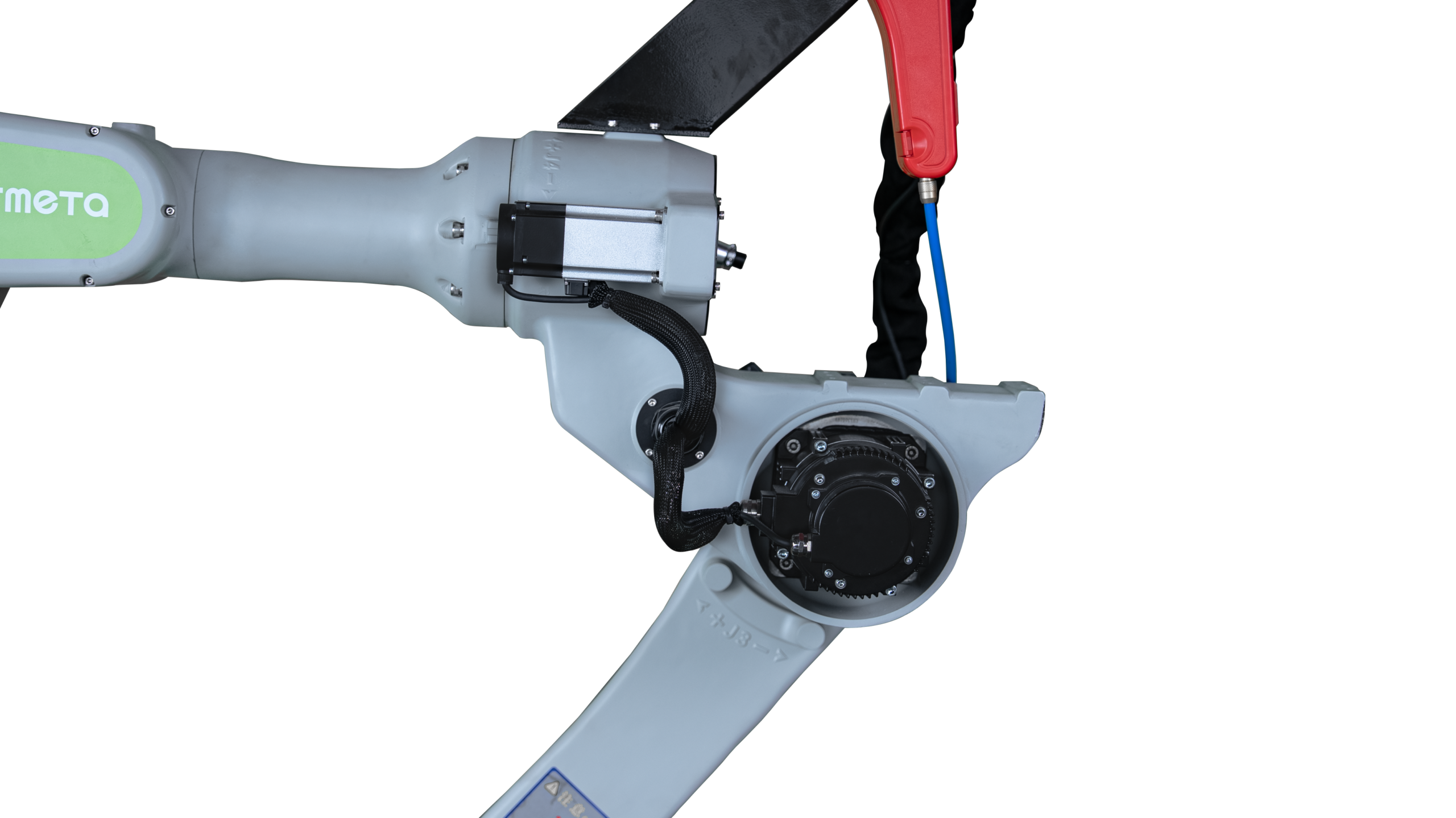

Robot Arm
The core automation unit providing precise, stable, and repeatable welding movements.
Welding Power Source
Delivers consistent and reliable welding output for various industrial applications.
Control Cabinet
Centralized control system for managing operations and ensuring stable performance.

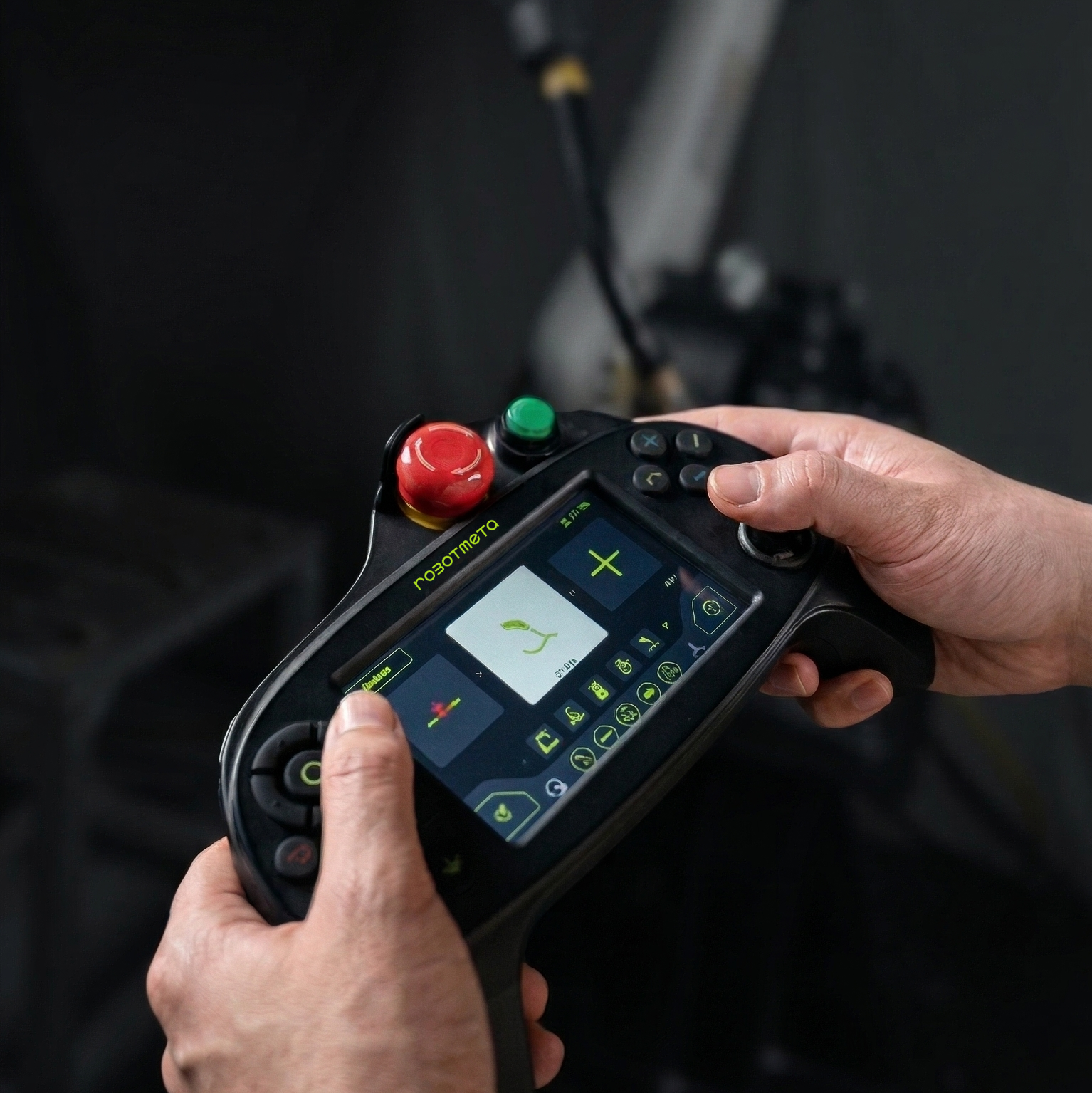

Handheld Teaching Pendant
Enables intuitive setup and programming through a user-friendly visual interface.
All components are designed to work together as one integrated solution, helping manufacturers reduce setup time and accelerate deployment.
Less Labor
More Welding
Pre-configured and fully equipped.
From crate to production within 24 hours.
Graphical interface designed for real operators.
Learn in 30 minutes. Run with confidence.
Stable arc control and consistent weld quality.
Built for demanding industrial applications.
Robot Programming Guide
Arc Welding Task
-
1Setup New a file
-
2Move to Standby A Record: New linear block
-
3Move to Welding Start B1 Record: New arc-welding point1 block
-
4Move to Welding Path B2 Record: Arc point2
-
5Move to Welding End B3 Record: Arc point3
-
6Move to Standby C Record: New linear block
Linear Welding Task
-
1Setup New a file
-
2Move to Standby A Record: New linear block
-
3Move to Welding Start B Record: New linear block
-
4Move to Welding End C Record: New welding-linear block
-
5Move to Standby D Record: New linear block
How Robotmeta Compares
Best-in-class hardware and software, built for real manufacturing and priced to win. Robotmeta delivers faster setup, higher productivity, and reliable performance where it matters most.
| Category | Robotmeta | Others(average) |
|---|---|---|
| Price | $9,999+ | $50,000+ |
| Purchase Flexibility | Buy or Installments | Buy |
| Time to Productivity | 1 Day | 1 Week – 1 Month |
| Payload Capacity | 10 kg | 5 – 10 kg |
| Working Reach | 1.5 – 2 m | 1 – 1.5 m |
| Motion Speed | Up to 1280° /s | ~180° /s |
| Repeatability | ±0.03 mm | ±0.05 mm |
| Support & Training | Free Lifetime Support | Paid Subscription |
| Remote Assistance | Available (24/7) | Not Available |
Welding Kit
A fully integrated robotic solution designed for immediate deployment.
Pre-wired, pre-configured, and shipped ready to weld.
Skip the complex integration process and instantly multiply your manufacturing throughput from day one.
Why Choose Us?
Easy to Operate
Start in just 30 minutes with a handheld teaching pendant and intuitive visual interface — no complex programming required.
Faster ROI
Reduce labor costs and improve production efficiency from day one with reliable automation.
Ready to Deploy
Delivered as a complete system with fast installation and seamless integration into your production line.
Accessible Entry Cost
Starting from $9,999, making welding automation easier to adopt without large upfront investment.
DELIVERY & SUPPORT
Support That Keeps You Running
From delivery and installation to daily operation, our team provides responsive service and dependable technical support to keep your production running smoothly.
We believe reliable service is just as important as reliable equipment. From pre-sales communication to installation guidance and ongoing technical support, our team responds quickly and helps keep your production running smoothly.
< 30min
Resopnse time
24 h
Online support
7 / 24
Technical support
FAQs
What is the lead time for delivery?
Delivery takes 30 business days after order confirmation.
What materials and thicknesses can RobotMeta robots weld?
Supported materials include carbon steel, cold-galvanized steel, stainless steel, and aluminum alloy. The supported thickness range is 1 to 8 mm.

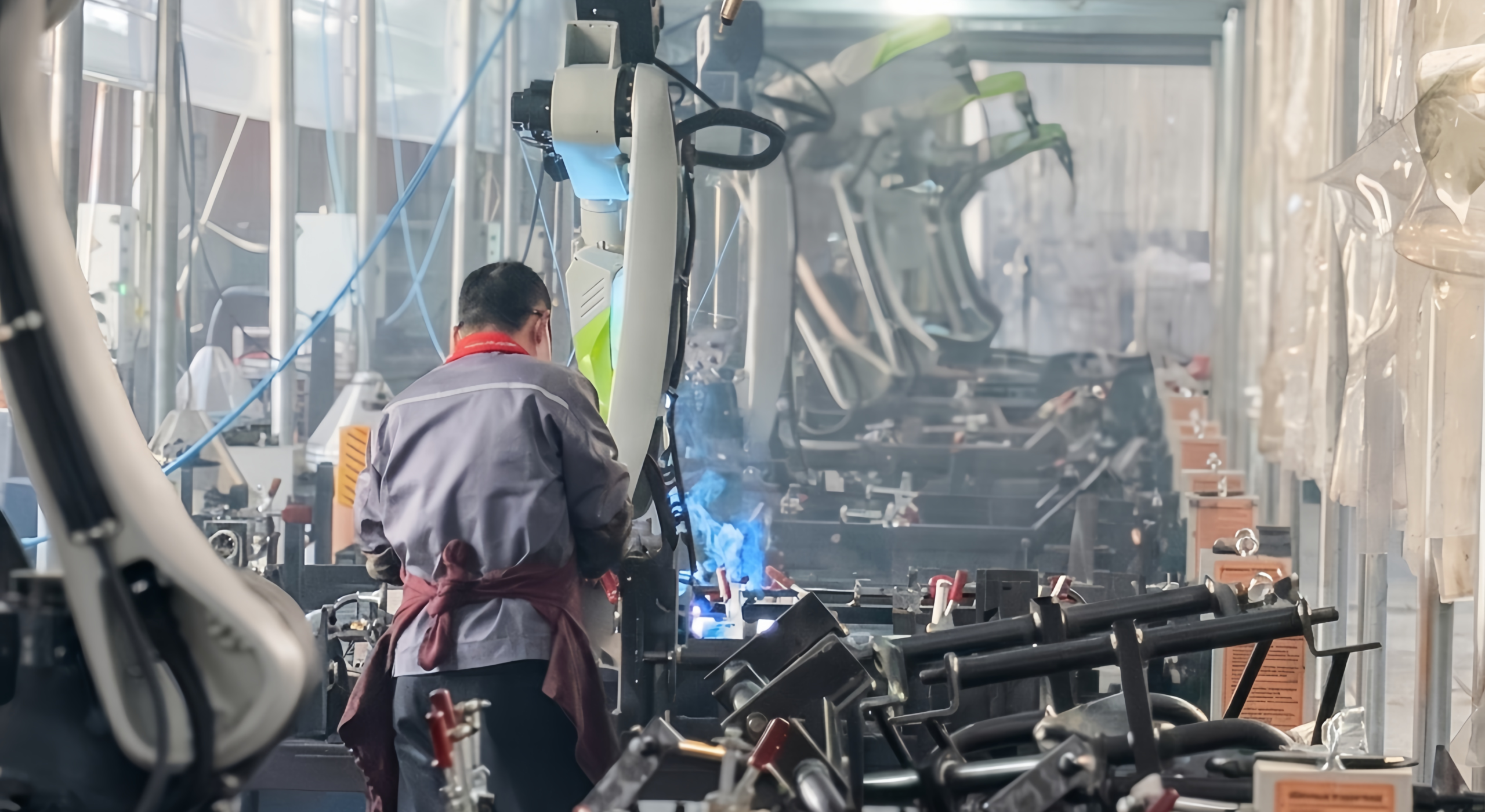

What types of workpieces are suitable for welding?
Suitable applications include:
• Structural Parts: Mass-produced square/round tubes, sheet metal, flanges, doors, windows, and guardrails.
• Transportation Equipment: Frames for electric bikes, strollers, and storage racks.
• Others: Steel structures requiring spot welding or short welds.
What types of workpieces are NOT recommended?
We do not recommend our robots for pressure vessels, general spliced plates from blanking, or non-standard custom parts that are not mass-produced.
What is the warranty period?
We provide a standard 2 years warranty for the robotic system and power source, along with lifetime online technical support.
Are professional programming skills required to operate the robot?
No. The control system is designed for intuitive operation. Your operators can master basic programming and daily operations after a short period of standard training.
Is installation guidance provided?
Yes. Detailed manuals and video tutorials are included with the system. Remote engineering support is also available to ensure fast deployment.
